TPL Cancellation Pattern #1: Cancellation by Polling

The orderly shutdown of threads in a multithreaded application is an important task to ensure proper disposal of resources and completion of work items without losing data. This is usually handled by setting a shared variable to a signaled value for the thread(s) to monitor, or in extreme cases through the use of Thread.Abort method. Either of these are problematic to control and ensure proper operation, especially as the # of threads gets to be over one! And even still, the process of determining when all threads have stopped also is wrought with problems.

To alleviate these problems, the TPL provides a new mechanism for controlling the shutdown of tasks, referred to a CancellationToken. CancellationToken’s provide a model of cooperative shutdown of tasks, where cancellation tokens provide a well defined means of being able to signal task cancellation, and to also provide information to the signaler that all tasks have indeed shutdown.

Additionally, TPL tasks may not even be implemented by threads, and therefore a new mechanism is required. It is currently the case that tasks are implemented on the thread pool, but other task factories can be implemented to schedule code execution in other means, for example on the GPU which would not use the normal threading API’s. The cancellation token model then also provides a unified cancellation model that can work with multiple task implemenations, as well as coordinating shutdown of tasks running in different implementations.

Understanding of the different patterns of implementing shutdown is important to being able to interoperate successfully in a coordinated model of cancellation. As a general practice, you should not assume that your task works in isolation, that it may need to be cancelled in combination to other tasks upon the request of a supervisory task. And your task should be implemented in a means that they can always identify and cancel operation in a timely manner.

To be a good citizen of TPL, task implementations and coordination should follow a number of patterns, all of which have slightly different ramifications on how orchestration of cancellation occurs. This is the purpose of this sequence of posts, to introduce the reader to these different patterns.

The first pattern we'll examine I refer to as "cancellation via polling".  The following code exemplifies the pattern.  A function is declared that will run run as a task.  One of the parameters to the function will be a CancellationToken, which the implementation of the function can use to identify that a cancellation has been signaled.  The function in this examples continuously loops, with each loop pausing for 100ms to simulate some work, and incrementing a count through each iteration.  When cancellation is identified, the function will return the number of iterations performed.

            var f = new Func(
                (token) =>
                {
                    var count = 0;
                    while (!token.IsCancellationRequested)
                    {
                        count++;
                        Task.Delay(100).Wait();
                    }
                    return count;
                }
                );

            var cts = new CancellationTokenSource();
            var ct = cts.Token;

            var task = Task.Factory.StartNew(() => f(ct));
            Task.Delay(500).Wait();

            cts.Cancel();
            task.Wait();

            Console.WriteLine("{0}", task.Status);
            if (task.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task.Result);

Cancellation tokens are not directly instantiated.  Instead they are created via a factory class called CancellationTokenSource.  The actual token is available via the CancellationTokenSource's Token property.  The token is then passed to methods to track signaling of cancellation via the tokens IsCancellationRequested property.  The actual signal for cancellation is set on the cancellation token source, not on the token.  Also, you can only signal cancellation once, and you can't reverse a cancellation request.

This example creates a cancellation token, and then runs the method as a task and passes the cancellation token to the task.  It then delays for 500ms, which gives the task time to do roughly 5 iterations.  After this short delay, the cancellation token is signaled via the Cancel method of the token source, which will cause the task to see the signal during its next iteration, which in this case may take up to 100ms.  Note that setting the cancellation does not terminate / abort any tasks, it is just setting a value that all tasks that have been passed this token can identify.

After setting the cancellation signal, this code then waits for the task to complete.  If the task is implemented to work well with collaborative cancellation, then the task will complete work and move into a state that the wait method on the task will eventually, and if done correctly, complete in a timely manner.  In this example, this could take upwards to 100ms.

The example then writes to the console the value of the state of the task, and then the Result property of the task.  The output from this example should be the following (perhaps a slight variance in the count due to processor differences).

RanToCompletion
5
Press any key to continue . . .

This is the result that was expected. While the main thread/task waits for 500ms, the sub-task will iterate five times, see the signal, exit the while loop, and then return the value. The task will notice the method call completing, and transition to the RanToCompletion state.

This example does exhibit a problem: the fact that it may take 100ms for the signal to be identified.  This can be rectified by passing the token to the Task.Delay method (modified method shown):

            var f = new Func(
                (token) =>
                    {
                        var count = 0;
                        while (!token.IsCancellationRequested)
                        {
                            count++;
                            Task.Delay(100, token).Wait();
                        }
                        return count;
                    }
                );

The Delay method will then watch the cancellation token for it's signal, and return immediately upon recognition. When running, the output is then:

Unhandled Exception: System.AggregateException: One or more errors occurred. ---> System.AggregateException: One or more
 errors occurred. ---> System.Threading.Tasks.TaskCanceledException: A task was canceled.
   --- End of inner exception stack trace ---
   at System.Threading.Tasks.Task.ThrowIfExceptional(Boolean includeTaskCanceledExceptions)
   at System.Threading.Tasks.Task.Wait(Int32 millisecondsTimeout, CancellationToken cancellationToken)

Whoopsies! What's going on?

The answer is that it is, in many cases, considered proper form in processing a signal for cancellation to execute the ThrowIfCancellationRequested method of the cancellation token. This will throw a TaskCanceledException and exit the method. The Task.Delay method does just this.  And since the code does not catch the exception, execution of the app completely aborts.

To handle the exception, there are three sub-patterns that you can follow.  The first is to wrap the code starting the task that propagates the exception with a try/catch.  A modification like this could look like the following:

            try
            {
                cts.Cancel();
                task.Wait();
            }
            catch (AggregateException ex)
            {
                Console.WriteLine(ex.Message);
                Console.WriteLine(ex.InnerExceptions[0].InnerException.Message);
            }

And the results would be the following:

One or more errors occurred.
A task was canceled.
Faulted
Press any key to continue . . .

The exception that is thrown in this case is actually an AggregateException. This is an exception class that wraps one or more other exceptions. Each task that executes the token's ThrowIfCancellationRequested method will have a TaskAbortedException object included as one of the InnerExceptions.

This pattern of aggregating exceptions like this is actually very convenient. It is a way of a task that has received the cancellation signal to notify the signaler that it has canceled effectively.

Let's look at how this can be used by modifying the example a little. The modification allows the passing in of the delay value to the method, and also has the method stop iterating / complete after 3 iterations. Two tasks are then started, one with a 100ms interval and the other with 250ms. The same delay of 500ms is performed, and then the cancel is signaled.

            var f = new Func(
                (interval, token) =>
                    {
                        var count = 0;
                        while (!token.IsCancellationRequested & count < 3)
                        {
                            count++;
                            Task.Delay(interval, token).Wait();
                        }
                        return count;
                    }
                );

            var cts = new CancellationTokenSource();
            var ct = cts.Token;

            var task1 = Task.Factory.StartNew(() => f(100, ct));
            var task2 = Task.Factory.StartNew(() => f(250, ct));

            Task.Delay(500).Wait();

            try
            {
                cts.Cancel();
                Task.WaitAll(task1, task2);
            }
            catch (AggregateException)
            {
            }

            Console.WriteLine("task1.Status == {0}", task1.Status);
            if (task1.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task1.Result);
            Console.WriteLine("task2.Status == {0}", task2.Status);
            if (task2.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task2.Result);

When executed, the following is the result:

task1.Status == RanToCompletion
3
task2.Status == Faulted
Press any key to continue . . .

The first task can complete 3 iterations within 500ms, and therefore moves to RanToCompletion status, and the second task does not, throws a TaskAbortedException, and moves to the Faulted state. The exception can then be used to identify which one of the tasks has not completed and responded to the cancellation request. Normally, a lot more work when using threads.

What if we wanted to see how many iterations were completed by a task before the cancel signal was identified? The method can be changed to catch the exception thrown by the Task.Delay task and exit normally, as follows:

            var f = new Func(
                (interval, token) =>
                    {
                        var count = 0;
                        while (!token.IsCancellationRequested & count < 3)
                        {
                            count++;
                            try
                            {
                                Task.Delay(interval, token).Wait();
                            }
                            catch (AggregateException)
                            {
                            }
                        }
                        return count;
                    }
                );

            var cts = new CancellationTokenSource();
            var ct = cts.Token;

            var task1 = Task.Factory.StartNew(() => f(100, ct));
            var task2 = Task.Factory.StartNew(() => f(250, ct));

            Task.Delay(500).Wait();

            try
            {
                cts.Cancel();
                Task.WaitAll(task1, task2);
            }
            catch (AggregateException)
            {
            }

            Console.WriteLine("task1.Status == {0}", task1.Status);
            if (task1.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task1.Result);
            Console.WriteLine("task2.Status == {0}", task2.Status);
            if (task2.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task2.Result);

And the results:

task1.Status == RanToCompletion
3
task2.Status == RanToCompletion
2
Press any key to continue . . .

Because the exception was caught in the task, and the method executed by the task completed, both now exit cleanly, no exceptions thrown, the state of both move to RanToCompletion, and the results from each retrieved.

Now as if these weren't enough permutations on how to do a cancellation, there are still more. We have not examined actually throwing a TaskAbortedException to get out of our task. Lets look at the following modification of the code.

            var f = new Func(
                (interval, token) =>
                    {
                        while (true)
                        {
                            Task.Delay(100).Wait();
                            token.ThrowIfCancellationRequested();
                        }
                    }
                );

            var cts = new CancellationTokenSource();
            var ct = cts.Token;

            var task1 = Task.Factory.StartNew(() => f(100, ct));

            Task.Delay(500).Wait();

            try
            {
                cts.Cancel();
                task1.Wait();
            }
            catch (AggregateException ex)
            {
                Console.WriteLine("Caught exception {0}", ex.InnerExceptions[0].Message);
            }

            Console.WriteLine("task1.Status == {0}", task1.Status);
            if (task1.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task1.Result);

The method executed by the task now is a while(true) loop, which delays for 100ms (not checking the token in the delay), and then calls the tokens ThrowCancellationIfRequested method. So, every 100ms this task will check the flag, and to exit it will throw an exception. When this happens, the exception is caught and the task's status is reported as Faulted.

Caught exception: The operation was canceled.
task1.Status == Faulted
Press any key to continue . . .

Now let's change one single line of code: 15. We are now passing in the cancellation token as a parameter to the Task.StartNew method. This associates the task with that token. If the method being run by the task throws an OperationAbortedException which contains this token (the case in this example), then TPL transitions the status of the task to Canceled instead of Faulted.

            var f = new Func(
                (interval, token) =>
                    {
                        while (true)
                        {
                            Task.Delay(100).Wait();
                            token.ThrowIfCancellationRequested();
                        }
                    }
                );

            var cts = new CancellationTokenSource();
            var ct = cts.Token;

            var task1 = Task.Factory.StartNew(() => f(100, ct), ct);

            Task.Delay(500).Wait();

            try
            {
                cts.Cancel();
                task1.Wait();
            }
            catch (AggregateException ex)
            {
                Console.WriteLine("Caught exception {0}", ex.InnerExceptions[0].Message);
            }

            Console.WriteLine("task1.Status == {0}", task1.Status);
            if (task1.Status == TaskStatus.RanToCompletion) Console.WriteLine("{0}", task1.Result);
Caught exception: A task was canceled.
task1.Status == Canceled
Press any key to continue . . .

The primary ramification of this is that if you want to have a task that responds to a cancellation event move to it's Canceled state, the task needs to throw an OperationAbortedException, which is the case when calling ThrowIfCancellationRequested method on the token and the IsCancellationRequested flag is true.

A second reason for passing the token to the StartNew method is that if the token already has its cancellation value set, then the task will not be started at all.  The reasoning for this is that the token could have been passed in from elsewhere, and by the time this code tries to start other tasks the flag may have been set by another task.  This prevents other tasks from being started and having to then cancel immediately, saving those resources from being unnecessarily consumed.

SUMMARY

Phew!!  That was a lot, and this is just the one pattern of cancellation: polling.  There are two more.  Those will be covered in the next posts in the series.  Fortunately, I can just show how they work without all these combinations of handing cancellation flags / throwing exceptions / try/catching.  Those will all still apply, but be able to be assumed.

Also, here is a useful link to MSDN on cancellation for your reference.

TPL Pattern #2: Scatter and Gather with Timeout (Part 2: Adding Cancellation)

In the previous post in the series (TPL Pattern #2: Scatter and Gather with Timeout (Guarding with Task.Delay)), I demonstrated how to wrap sub-tasks with another task to be able to recognize a timeout.  There was however a small problem in that although the code was able to run a continuation after the timeout and before the sub-tasks completing, the sub-tasks would still run to completion beyond the duration of the timeout.  So how do we stop those sub-tasks?  Remember, that is no abort method on tasks, and we'd want a more elegant solution than just aborting the task.

This is the domain of the CancellationToken.  Cancellation with tasks is a cooperative process, orchestrated through the use of a CancellationToken.  A single token can be passed to one or more tasks, and upon signaling that cancel is desired all tasks can monitor the tokens state representing a request for cancellation.  Tasks need to actively check the token for cancellation; simply signaling a token to cancel does not abort the task(s).  It is your responsibility, if supporting cancellation in your task, to make sure you code the task to allow frequent checking of this flag and appropriate and quick shutdown of the task.

Lets look at how the code in the previous example is modified to handle cancellation of the tasks after the timeout.  Here's the new code:


           var add = new Func<int, int, CancellationToken, int>(
                (a, b, t) =>
                {
                    log("add({0},{1})", a, b);
                    Task.Delay(1000, t).Wait();
                    log("add({0},{1})=={2}", a, b, a + b);
                    return a + b;
                });
            var mult = new Func<int, int, CancellationToken, int>(
                (a, b, t) =>
                    {
                        log("mult({0},{1})", a, b);
                        try
                        {
                            Task.Delay(5000, t).Wait();
                        }
                        catch (AggregateException ex)
                        {
                            log("Exception: {0}", ex.InnerExceptions[0].Message);
                        }
                        log("mult({0},{1})=={2}", a, b, a * b);
                        return a * b;
                    });

            var cts = new CancellationTokenSource();
            var token = cts.Token;

            var workers = new[]
                {
                    Task.Factory.StartNew(() => add(1, 2, token)),
                    Task.Factory.StartNew(() => mult(3, 4, token))
                };

            var guarded = new[]
                {
                    Task.Delay(1500, token),
                    Task.WhenAll(workers)
                };

            log("started guard");

            var guard = Task.WhenAny(guarded);

            guard.ContinueWith(
                completed =>
                {
                    log("guard task completed");
                    if (guarded[0].IsCompleted)
                    {
                        log("there was a timeout.");

                        log("workers[0].Status=={0}, Result=={1}", workers[0].Status,
                            workers[0].Status != TaskStatus.RanToCompletion
                                ? workers[0].Status.ToString()
                                : workers[0].Result.ToString());
                        log("workers[1].Status=={0}, Result=={1}", workers[1].Status,
                            workers[1].Status != TaskStatus.RanToCompletion
                                ? workers[1].Status.ToString()
                                : workers[1].Result.ToString());

                        cts.Cancel();
                        Task.WaitAll(workers);
                        log(workers[1].Status.ToString());
                    }
                    else
                    {
                        log("results == {0} {1}", workers[0].Result, workers[1].Result);
                    }

                    log("all done!");
                });

            log("falling through");

The first difference is in the functions that will be executed as tasks.  They now have an additional parameter, a CancellationToken, that will be passed to the function.  The Thread.Sleep method, which was being used to simulate a period of time the method works, is replaced by Task.Delay([time], token).Wait().  Threads don't have a concept of cancellation, so the code needs to use the task based equivalent, the Task.Delay method, which creates another task (it does not delay the current task), which reaches RanToCompletion status in the specified time.  But, and like many of the task methods, Delay also accepts a CancellationToken, which if it has its cancel state signaled, the Delay method will throw an exception at that point and return before the end of the specified interval.

In this example, the Task.Delay method of the mult function will notice the signal to the CancellationToken and throw an Exception.  Specifically, it will throw an AggregateException.  Therefore, the Task.Delay in this method is wrapped with a try/catch.  When the exception is thrown, it will be caught, and the method will exit promptly through the normal path of execution.  Because this exits cleanly, the task will have a RanToCompletion status when done.  If this exception was not caught, the status would be Faulted.  We'll come back to the importance of this in a little.

Lines 25-26 then create a CancellationToken.  You create a CancellationToken by creating an instance of CancellationTokenSource, and retrieving the .Token property.  The token can then be passed to the methods when they are started as a task, as is done in lines 30-31.

Code then executes as in the previous example until line 61.  At this point, it has been determined that there was a timeout, and that the mult task is still Running.  To notify it to stop, we call the Cancel method of the tokens source object.  This will set the cancellation requested state of the token and any interested tasks will be able to check this state.

The code then waits once more on all of the tasks, and very quickly the task running the mult function will notice the cancellation request, and exit cleanly and change its state to RanToCompletion, and hence the WaitAll method will complete.  We have now just shut down the task(s) that ran past the timeout!

Running the code produces the following, which demonstrates this is the case:

60.5592 started guard
44.8436 add(1,2)
44.8436 mult(3,4)
45.8281 started guard
54.6067 falling through
1055.0915 add(1,2)==3
1545.0274 guard task completed
1545.0274 there was a timeout.
1551.9088 workers[0].Status==RanToCompletion, Result==3
1552.8641 workers[1].Status==Running, Result==Running
1594.8094 Exception: A task was canceled.
1594.8094 RanToCompletion
1595.7698 all done!

This is identical in flow to the previous example through line 10.  It is at this point that the Cancel is signaled and the main task waits for all the specified tasks to complete.  The exception is caught, logged, and the task completes.  The WaitAll returns, the state of the mult task is then logged, and it has transitioned from Running to RanToCompletion, and the program exits with all tasks in a completed state.

Voila!

I will have to say that there are some subtleties to the task cancellation process that are not covered in this example.  There are actually several patterns for cancellation, each with different ramifications for how you signal, identify, and handle cancellation requests.  Those will be the subject of the next post.

TPL Pattern #2: Scatter and Gather with Timeout (Guarding with Task.Delay)

In my previous post in this series, A First Pattern of TPL: SCATTER AND GATHER, I introduced the scatter and gather pattern. While the code in the example demonstrates the pattern well, it’s not as robust as would often be needed.

This post discusses how to make add robustness through infusing the concept of a timeout into the code. As implemented, the continuation (gather) will not occur until all tasks are completed. What if we want to put a time limit on the completion of all tasks so that the program use any data retrieved, and handle the case for those tasks that not complete in the specified timeframe?

Fundamentally this is a fairly easy thing to accomplish in TPL, but like many things in programming, getting it exactly correct takes a little practice.  Let's examine the following code...

            var add = new Func<int, int, int>(
                (a, b) =>
                {
                    log("add({0},{1})", a, b);
                    Thread.Sleep(1000);
                    log("add({0},{1})=={2}", a, b, a + b);
                    return a + b;
                });
            var mult = new Func<int, int, int>(
                (a, b) =>
                {
                    log("mult({0},{1})", a, b);
                    Thread.Sleep(5000);
                    log("mult({0},{1})=={2}", a, b, a * b);
                    return a * b;
                });

            var workers = new[]
                {
                    Task.Factory.StartNew(() => add(1, 2)),
                    Task.Factory.StartNew(() => mult(3, 4))
                };

            var guarded = new[]
                {
                    Task.Delay(1500),
                    Task.WhenAll(workers)
                };

            log("started guard");

            Task.WhenAny(guarded)
                .ContinueWith(completed =>
                    {
                        log("guard task completed");
                        if (guarded[0].IsCompleted && !guarded[1].IsCompleted)
                        {
                            log("there was a timeout.");
                            log("workers[0].Status=={0}, Result=={1}", workers[0].Status, workers[0].Result);
                            log("workers[1].Status=={0}, Result=={1}", workers[1].Status, workers[1].Result);
                        }
                        else
                        {
                            log("tesults == {0} {1}", workers[0].Result, workers[1].Result);
                        }

                        log("all done!");
                    });

            log("falling through");

Let's walk through the code.  First, the log method writes the given string to the console, started with the number of milliseconds since the start of the program.  It's important to show the time of when things execute as there are certain aspects of the code that need this clarified.

The code at lines 1 and 9 declare two functions to do some math, the first adding two numbers and the second multiplying them.  Both methods write to the console that they are starting, then sleep for a period of time to simulate a lengthy calculation, then write the result to the console and return the value.

I gave both methods different sleep durations so that it is easy to show how it can be signaled to stop execution at a point where one task has completed its work and the other is still operating.

Line 18 declares an array of two tasks, scheduling an execution of the add and mult methods.

Line 24 is where we introduce a task based time "guard" to wrap the execution of the two tasks declared starting on line 18.  Line 26 declares a task that will run and complete in 1.5 seconds, and line 27 declare a task that will run when all the tasks in the given array have completed their execution.

Line 30 then does the magic.  It states that when any of the tasks in the array of tasks represented by "guarded" completes, that another task should be executed.  This is basically stating that the continuation code will run when either:

  • 1.5 seconds has expired, or
  • Both of the tasks running the add and mult methods completes
Therefore, we have set up the code to run 2 or more tasks to scatter/gather, and also specified how to signal the app in a predetermined amount of time if all the tasks do not complete.

When run, the following output is produced.  It demonstrates that we have accomplished our goal, albeit with an unintended side-effect:

31.2514 add(1,2)
46.8225 mult(3,4)
46.8225 add(1,2)
46.8225 falling through
1057.4352 add(1,2)==3
1541.3348 guard task completed
1541.3348 there was a timeout.
1541.3348 workers[0].Status==RanToCompletion, Result==3
5057.1723 mult(3,4)==12
5057.1723 workers[1].Status==Running, Result==12
5057.1723 all done!

The mult and add tasks start almost immediately, and then go into their respective delays.  As a matter of fact, the guard/timer task declared in line 26 actually is started before the mult task reports it has started. Line 5 then shows that this code completes its straight through execution, but there is a continuation task scheduled to run when either the timer task or the calculation tasks (all three still executing) complete.

Line 6 shows that the add task is completing at 1.068 seconds into execution.  Line 7 is the delay task completing, which means that either the delay task has completed, or both of the calculation tasks.  But how do we determine which of those two tasks has completed?  We can check the IsCompleted property of both of the tasks that were passed to 'WhenAny' in line 32.  Line 36 checks that if the delay task is complete, and the WaitAll task is not complete, then there was a timeout situation.

In this situation, this is the case.  The delay task has completed (it's reporting a status of RanToCompletion) by the log statement in line 39.  But notice that the logging of the status of the mult task and the "all done!' message is not shown until after 5 seconds have expired!  What's going on?

This is one of the subtleties of TPL.  Line 40 of the program tries to write the value of the Result property of the WaitAny task to the console.  Since that task has not completed (the mult task is still running), this blocks until the task is completed.  Hence why output does not commence until after 5 seconds into execution, where we first see the exit log in the mult method, then the log that is waiting on that tasks Result property released, and then the execution of the program completes.

In summary, if you try and access the Result property of a task, and the task has not completed, you will be blocked.

Given this, how can we fix this?  Let's change the code to the following.

            var add = new Func<int, int, int>(
                (a, b) =>
                {
                    log("add({0},{1})", a, b);
                    Thread.Sleep(1000);
                    log("add({0},{1})=={2}", a, b, a + b);
                    return a + b;
                });
            var mult = new Func<int, int, int>(
                (a, b) =>
                {
                    log("mult({0},{1})", a, b);
                    Thread.Sleep(5000);
                    log("mult({0},{1})=={2}", a, b, a * b);
                    return a * b;
                });

            var workers = new[]
                {
                    Task.Factory.StartNew(() => add(1, 2)),
                    Task.Factory.StartNew(() => mult(3, 4))
                };

            var guarded = new[]
                {
                    Task.Delay(1500),
                    Task.WhenAll(workers)
                };

            log("started guard");

            var guard = Task.WhenAny(guarded);

            guard.ContinueWith(
                completed =>
                    {
                        log("guard task completed");
                        if (guarded[0].IsCompleted)
                        {
                            log("there was a timeout.");
                            log("workers[0].Status=={0}, Result=={1}", workers[0].Status,
                                workers[0].Status == TaskStatus.Running
                                    ? "[still running!]"
                                    : workers[0].Result.ToString());
                            log("workers[1].Status=={0}, Result=={1}", workers[1].Status,
                                workers[1].Status == TaskStatus.Running
                                    ? "[still running!]"
                                    : workers[1].Result.ToString());
                        }
                        else
                        {
                            log("results == {0} {1}", workers[0].Result, workers[1].Result);
                        }

                        log("all done!");
                    });

            log("falling through");

Notice how I changed the log statements in lines x-y to check to see if the task Status is Running prior to accessing the Result property.  This changes the output to the following:

46.8706 started guard
46.8706 mult(3,4)
46.8706 add(1,2)
46.8706 falling through
1062.306 add(1,2)==3
1562.3686 guard task completed
1562.3686 there was a timeout.
1562.3686 workers[0].Status==RanToCompletion, Result==3
1562.3686 workers[1].Status==Running, Result==[still running!]
1577.3484 all done!
5062.8903 mult(3,4)==12

Notice now that the log of the mult task status reports that it is Running, and since in that case the program now does not access the Result property of that task, the log statement does not block.

But...

Why does the mult task report that it is done its work at 5062ms?  Well, this is what we told it to do.  And this gets to another important point in TPL to consider.  Since we did a WhenAny on the guard tasks, and the timeout completed, and it happens that the add task also was completed, but the mult task was not complete as it is still running even though the program went along its merry way.

Which leads to an issue... What if I want in this scenario to terminate any tasks still executing after the timeout fires?  After all, those tasks still running could be dragging down the system performance.  Well, a thread programmer would jump to saying call the kill thread method on tasks not having a RanToCompletion status.  But, there is no equivalent to this in TPL!

This will be the topic of my next post, the use of CancellationTokens to control task lifetime.  But in a nutshell, a task in TPL can't really "kill/terminate" another task.  It's considered an inelegant and indeed problematic solution to the problem.  So, TPL introduces the concept of cooperative coordination and cancellation via cancellations with tokens.  It's an important concept to understand as code you write, and if you want it to integrate will with other TPL code, which you perhaps didn't write, should be written to function properly in this model.

This will be the focus of the next post in the series...

A First Pattern of TPL: SCATTER AND GATHER

This post is an article that I submitted to be in NDC magazine.  It's intended to be the first of a series of posts on practical uses of TPL in your applications.

OVERVIEW

TPL (Task Parallel Library) and Dataflow have been around the .NET framework for a while now, and I'm still surprised at how relatively obscure they are in the general .NET developers knowledge set. Both provide elegant solutions to a number of hard problems in concurrent application development, providing the ability to create much simpler code than when just using the regular threading libraries in .NET. This article is the first in a series of articles, blog posts, and conference presentations that I will be giving on using TPL and dataflow to solve many common concurrency patterns in desktop, and in particular, desktop trading systems.

THE FIRST PATTERN OF TPL: SCATTER AND GATHER

This first article will explain a common pattern that I refer to as "scatter-gather", which is a common need of many financial systems when they start execution (as well as other types of systems). At the start of these applications it is commonly needed to retrieve data from many external systems while continuing to allow the user to continue with other actions while the data is gathered. Often, there are dependencies in this data, which requires all or a subset of the data to first be gathered before other data, and before any data is organized for the rest of the application.

This "scatter-gather" pattern has at least the three following requirements that must be handled and which I’ll discuss implementation with TPL:

  • Execute 2 .. N data requests in parallel and preferably asynchronously
  • While requests are pending, the user can still perform other functions (UI is not blocked)
  • When data is received from all requests, execution continues to take action on all data items

Traditionally coding a solution for this with threads tends to get complicated, with the need for creating multiple threads, monitoring those threads for completion, needing to pass data from the threads back through shared and concurrent data buffers, and also the issue of synchronization with the user interface thread when the data is ready. TPL has been designed to take all of these issues into account without the need to explicitly code all of these constructs. Lets examine some of the constructs in TPL that facilitate coordinating this complexity, using a few simple examples.

Tasks, unlike threads, can return data upon their completion. Threads are in a sense fire-and-forget. If you want to return data from them, you need to code the thread to put the data into memory somewhere. And to do this, you need to make sure that if the threads servicing all of your tasks share a buffer, that you provide synchronization around that buffer.

In comparison I like to think of tasks as being "promises" to perform a unit of work at sometime in the future and then potentially return a result (tasks can, if you want, return void). The unit of work may or may not be executed in parallel by TPL, but using the default task scheduler in .NET it will run on the thread pool. When the task is finished with the unit of work, it will provide a simple means of synchronizing and retrieving the result of the unit of work back to its creator.

If you think of the unit of work in terms of a function, then you are on your way to being able to utilize tasks effectively. Consider the following code:


            var f = new Func<int, int, int>(
                (a, b) =>
                    {
                        Thread.Sleep(1000);
                        return a + b;
                    });
            Console.WriteLine("Waiting for completion");
            var r = f(1, 2);
            Console.WriteLine(r);
            Console.WriteLine("Continuing on to do some other work");

This declares a function to add two integers (imposing a nominal delay of 1 second), adds 1 + 2, and writes the result to the console.  The function f(1,2) is executed synchronously, meaning flow of code that calls the function halts until the function returns. This program will halt for one second before writing result of the computation.  This is normal program execution, albeit a little more functional in nature with the inline function being declared.

Now let’s change this to execute as a task to introduce asynchronous processing with TPL:

            var f = new Func<int, int, int>(
                (a, b) =>
                {
                    Thread.Sleep(1000);
                    return a + b;
                });
            Console.WriteLine("Waiting for completion");
            var task = Task.Factory.StartNew(() => f(1, 2));
            task.ContinueWith(t => Console.WriteLine(t.Result));
            Console.WriteLine("Continuing on to do some other work");
            Console.ReadLine();

Instead of directly calling the function, the program instructs the default task scheduler to execute the processing of the function asynchronously to the caller via the StartNew method on the static Factory property of the Task class. StartNew returns a task object, which is the representation of the “promise” to do work and return a value in the future. Execution continues for this method, and the console message that the program is continuing is displayed, and the task completes later on its own schedule.

So, how do we know when this task is complete? And how do we get the result of the task? This is the purpose of the ‘ContinueWith’ method, as well as the ‘Result’ property, of a task. When a method that is executed via a task is completed, the TPL will signal that fact, and this can be automatically hooked into by passing a method to the task via its ContinueWith method, which the TPL will execute when the task completes.

This method that the TPL executes upon task completion is passed a single parameter which is the task that has completed. In this example, the value of ‘t’ would be a reference to the same object as the variable ‘task’. This is convenient as the continuation method may not be inline like this example and therefore this provides the reference to the completed task. From that reference, the value that is returned from the method executed by the task is available with the ‘Result’ property, which in is an integer value and will be ‘3’.

It is worth noting how elegant this code is compared to using normal threads. To handle this situation in that model we would have to introduce one of the asynchronous patterns, either APM (async programming model) or EAP (event-based async pattern). For reference on these please see http://msdn.microsoft.com/en-us/library/jj152938.aspx. The pattern that this program uses is referred to as the TAP task-based async pattern, and compared to EAP or APM, TAP has already saved us a lot of code reduced potential errors.

But this is not what I consider the greatest benefit that TPL provides for us. The TPM model also allows us to do composition of tasks, providing simple orchestration of processing by taking the results of those tasks and flowing them into other tasks. (There are other benefits, but they are beyond the scope of this paper).

Extending this example a little, let’s change the code to execute the function twice in parallel (adding 1+2, and 3+4), and when both are complete, add the results of those two values, which will result in output of 10 to the console.

            var f = new Func<int, int, int>(
                (a, b) =>
                {
                    Thread.Sleep(1000);
                    return a + b;
                });

            Console.WriteLine("Waiting for completion");

            var task1 = Task.Factory.StartNew(() => f(1, 2));
            var task2 = Task.Factory.StartNew(() => f(3, 4));
            var task = Task.WhenAll(task1, task2).ContinueWith(tasks => f(tasks.Result[0], tasks.Result[1]));
            task.ContinueWith(t => Console.WriteLine(t.Result));

            Console.WriteLine("Continuing on to do some other work");
            Console.ReadLine();

The program starts the two tasks, each similarly to the earlier example, but passing different values to each. It then uses the Task.WhenAll static method of the Task class to wait for all specified tasks to complete. When all tasks are complete, the TPL will execute the specified method. This is actually executed as another task. This continuation task is passed an array of integers, one for each task passed into the Task.WhenAll method. The method then calls the method to add those results, returning that value as the result of that third task, which when complete writes its output to the console with another continuation.

Reconstructing this with equivalent thread-based code is actually non-trivial compared to the previous example. There are a number of techniques to implement this with threads, all of which are nowhere as simple, and all more error prone than this simple TPL code.

SUMMARY

Although trivial in its computations, this example has shown the simplicity in creating and composing tasks and their results into further processing actions.  The simple calculations in this example can be replaced with much more complicated actions, with a real-world example from the domain of trading systems being the request of current equity positions in parallel from multiple exchanges, combined together with enrichment data from internal systems that is added after the market data is retrieved, and then the subsequent creation of view model and view representation of the data.

This article has also only focused on this first pattern, and not covered other valuable TPL concepts such as exception handling and automatic task synchronization with other contexts such as the UI thread.  Also, this process of composition of tasks with continuations, although elegant in its simplicity, is limited in its ability to be extremely flexible in decision making, and in other complicated constructs such as batching of results and decision making of continuation paths based upon results from finished tasks.  These actions are more suited for an additional framework, the Task Dataflow Library.

Also not covered, the .NET 4.5 compilers provide the async / await constructs, which simplify this model of TPM code with continuations even more by moving providing direct compiler support for handling continuations with closures of code in the same method.  But that’s a story for another article…

I'm currently the top listed speaker for NDC Oslo :)



About the author

I'm a .NET, XAML, and iOS polyglot that loves playing with new things and making cool and innovative stuff.  I am also a Mac junkie.

I am Principal Technologist for SunGard Global Services in NYC, in their Advanced Technologies practice, and I work extensively with SunGard's energy and financial customers.

Note the the posting on this blog are my own and do not represent the position, strategies or opinions of SGS.

Widget TwitterFeed not found.

The file '/widgets/TwitterFeed/widget.ascx' does not exist.X

Recent Comments

None

Month List

42 Spikes | WCF

WCF RIA Services and POCO - Is there any Value?

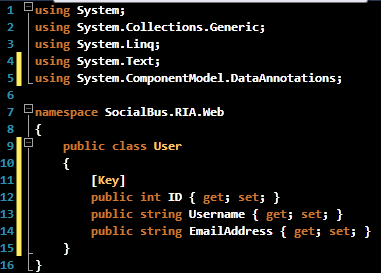

A few weeks back I wrote about getting RIA services to work with POCO.  It was a long post, so long that it was 5 posts.  In the weeks since, I spent some time trying to use POCO/RIA in some work that I was doing for a client, and I started to develop some strong feelings about why bother with all of this extra work to just get things to work with RIA instead of just using WCF/Data Contracts/DTOs.  I'm still trying to be able to articulate these feelings, but figure I'll give it a shot right now.

First, it was a lot of work to get the POCO to work with RIA, at least compared to just creating a class that is annotated with DataContact/DataMember attributes.  The former took me 5 posts just to describe how it works.  The latter takes maybe a minute to build an end to end solution.

But that's not all.

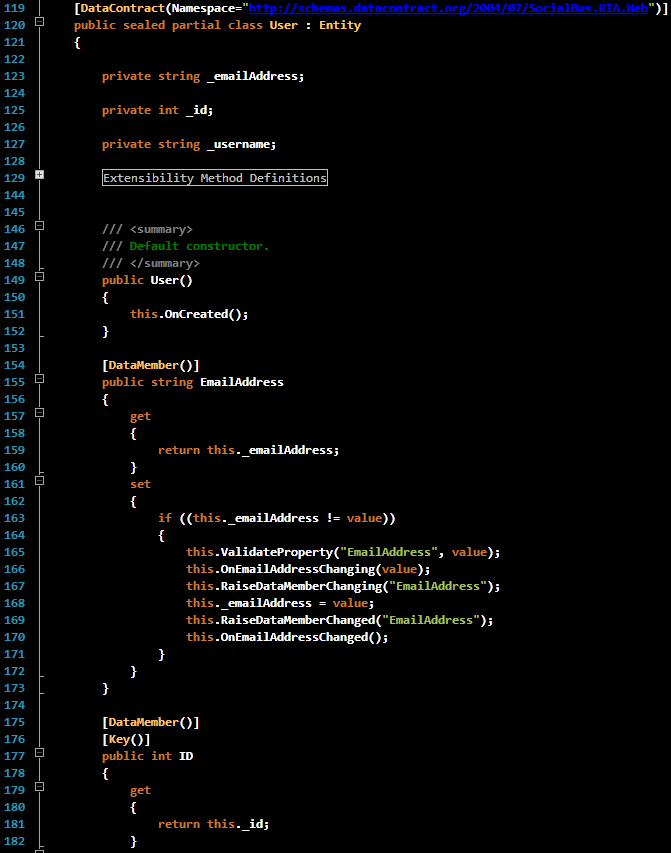

Second, a lot of what RIA (excuse me WCF RIA) does is autogenerate code to do different things, such as generating client side objects that know how to track changes and do automatic validation.  I'm left to wonder about the former, but do by that the automatic validation code is useful, but I'm not sure its worth the effort getting POCO to work over using validation libraries such as EL.

The issue with tracking changes I think is the sticking point, as I don't see what value there is in POCO, as it is inherently tied to using entities on the server side (read Entity Framework).  Without the mapping back to entities in the client side, is it adding any value?  I don't see that it is.

This also leads to the generation of service methods for which I can see as nothing but CRUD operations.  Again in a POCO world, is CRUD really necessary?  If I'm not using a database, and not modelling my objects off of entities generated from the database, do I really need CRUD methods auto generated by convention? And to be honest, it was really hard to just get a single POCO object returned with RIA.

So what I think this boils down to is without a database, and then additionally without EF, I don't see the advantage.

And now one more kicker.  The system I was building wanted to try and use RIA, but we were not connecting to a database, so hence the POCO route.  Instead of a database, we are connecting with a backend system via EMS messages bridged over JMS into services in Oracle.  This throws this whole thing into the world of asyncronous messaging.  WCF RIA services are inherently tied to syncronous operations, since they pretty much are generated to do syncronous communications to the database and return the result.  The EMS method we looked at had to be asyncronous (it's the nature of the environment I'm working in, not that EMS can't be syncronous - the back end Oracle app could not do this syncronously).

So, the method to get objects would need to either block waiting to a response message on EMS, or return directly without any data.  In the latter case, there is really no use for RIA; why do all this magic if I can't get the data to be managed during the RIA services call?  Well, none that I can see.  In the case of blocking waiting for a response, sure I can program that, but it is going to inherently reduce scalability of the solution.  And it kind of defeats one of the things I really like about Silverlight - the asyncronous nature of calls to the client.  The Silverlight client will still do the call asyncronously which is great, but with my having to program syncronous blocks on the server it just seems to defeat the purpose.  I would rather go totally asyncronous and gain all the scalability possible, even at the expense of having to use callbacks from the server to the silverlight client for when response messages arrive back on EMS.

So, I guess this would lead to some rules about when to use / not use WCF RIA.  I'll take a try at them...

When not to use:

  • You are not using a database.
  • You need asyncronous communications with a third tier
  • You are using something other than Silvelright for a client

When to use:

  • You don't have a database, or are doing async communications with a third tier, but feel the automatic generation and use of validation rules is worth the effort
  • You are building forms-like CRUD apps against your database model

I also have concerns about how portable this is to non-Silverlight clients.  For example, I can't use the RIA objects in WPF, and I wonder how this would integrate to web or AJAX clients; sure the classes can't be used, but can you use the web services that are exposed?  My guess (as I haven't tried it yet) is that you can't, at least easily.

I'd really like to hear your comments on this.  Every time I look at RIA services I really want to like it, and I'd like to be able to feel like it has broader value, so please let me know your experiences.



Using Silverlight 4 and Net.TCP Duplex Callbacks

Over the last several weeks I've been investigating for a client a means of providing callbacks to Silverlight clients to push trade updates to all the users.  This has typcially been done using a PollingDuplexHttpBinding in Silverlight 3 and 2, but this is problematic as it is first a polling model (yuk!), and second the only data format is XML it could be slower then using a binary format.

The experience has been quite an adventure, as usual with beta Microsoft stuff.  There's not much documentation available, and everything that can be found is kind of all over the place in quality.  The best two sources I have found are the following two great blog posts by Tomasz Janczuk and Radenco Zec:

While these were valuable posts, I did still find the effort to have a lot of troubles, so I thought I'd also throw out my $0.02 on the process.

To get this Net.TCP to Silverlight 4 to work, you are going to need to do a bunch of things even to get up and running:

  • You need to run the web solution under IIS as the VS.NET web server does not support NET.TCP
  • You must configure Non-HTTP activation for IIS so it can respond to Net.TCP request
  • You must configure both the web site and web application to respond to Net.TCP
  • You must provide a policy server to verify the client as being able to communicate to the server with TCP

I had some problems with each of these, and I'll walk through configuration of these items.

Once you have that complete, there is also a bunch of configuration and programming that you need to get right in order for everything to work:

  • Your server web.config needs to be configured properly to support Net.TCP
  • Your client must also bind properly to the service

Yes, all WCF things need this, but I found documentation to be vexing, so I'll show exactly how I did it.

To get IIS configured to use Net.TCP, you need to go to control panel / install windows components, and make sure the following is selected:

This allows .NET to integrate with the Windows Process Activation Service to kick-start IIS on receipt of Net.TCP requests.  After installing this you will notice in the service management console the following service:

Make sure this service is running or you will get the an error when attempting to contact the service (I'll show the error later, once I get to some code).

Ok, A little of the prerequisites are out of the way so lets do a little coding!  Create a new visual studio solution which consists of a Silverlight 4 application and web site to serve the application.   My example looks like this:

At this point, because we cant use the VS.NET web server, we need to modify the web site configuration to run under IIS.  To do this, right click the web solution and bring up properties / web, and select "Use Local IIS Web server".  It will auto fill a project url, and then press 'Create Virtual Directory' to set up the application in IIS:

You should get a dialog stating that the virtual directory was created successfully.  Now add a WCF service to the web project that we will use to send messages back to the client.  I've called mine "PushDataService", and it creates an interface file (IPushDataService.cs) and PushDataService.svc file in the web project.  It is also needed to create an interface that represents the API that the server uses to talk back the the client, so I add an interface to the web solution named IPushDataCallback.

Now that we have the service and interfaces created, we need to add some method definitions to them and annotate them with attributes properly.  My IPushDataService interface is as follows:

namespace DuplexSilverlightExamples.Web
{
    [ServiceContract(CallbackContract = typeof(IPushDataCallback))]
    public interface IPushDataService
    {
        [OperationContract(IsOneWay = true)]
        void RegisterForUpdates();
        [OperationContract(IsOneWay = true)]
        void UnregisterForUpdates();
    }
}

The interface contains two methods, one that the client will call to notify the server that it wants to receive push updates, and another to tell the server would like to stop receiving updates.  Both of these methods are annotated with [OperationContract(IsOneWay = true)] which tells WCF that the client can call these methods and that there is no return value and it doesn't need to worry about a back channel.

The [ServiceContract(CallbackContract = typeof(IPushDataCallback))] on the interface tells WCF that the service implementing this interface is a WCF service and that it will support a communications channel back to the client and that it will follow the interface specified by IPushDataCallback.  And speaking of IPushDataCallback, here it is:

namespace DuplexSilverlightExamples.Web
{
    public interface IPushDataCallback
    {
        [OperationContract(IsOneWay = true)]
        void Update(string theUpdateMessage);
    }
}

This tells WCF that the communication channel back to the client will support a one way communications channel for passing a string message back to the client through the Update message.

Now we need to implement the service.  My service is implemented as such:

namespace DuplexSilverlightExamples.Web
{
    [ServiceBehavior(ConcurrencyMode = ConcurrencyMode.Multiple, InstanceContextMode = InstanceContextMode.Single)]
    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    public class PushDataService : IPushDataService
    {
        public static Dictionary<IPushDataCallback, IPushDataCallback> _clients =
            new Dictionary<IPushDataCallback, IPushDataCallback>();

        public PushDataService()
        {
            new Thread(new ThreadStart(pumpUpdates))
            {
                IsBackground = true
            }
            .Start();

        }

        public void RegisterForUpdates()
        {
            IPushDataCallback c = OperationContext.Current.GetCallbackChannel<IPushDataCallback>();
            if (!_clients.ContainsKey(c))
            {
                lock (_clients)
                {
                    _clients.Add(c, c);
                }
            }
        }

        public void UnregisterForUpdates()
        {
            IPushDataCallback c = OperationContext.Current.GetCallbackChannel<IPushDataCallback>();
            if (_clients.ContainsKey(c))
            {
                lock (_clients)
                {
                    _clients.Remove(c);
                }
            }
        }

        public void pumpUpdates()
        {
            Random w = new Random();

            List<IPushDataCallback> bad = new List<IPushDataCallback>();
            int count = 0;

            while (true)
            {
                Thread.Sleep(w.Next(10000));

                lock (_clients)
                {
                    if (_clients.Count > 0)
                    {
                        bad.Clear();
                        foreach (IPushDataCallback client in _clients.Keys)
                        {
                            try
                            {
                                client.Update(string.Format("{0}", count++));
                            }
                            catch (Exception)
                            {
                                bad.Add(client);
                            }
                        }

                        bad.ForEach(bc => _clients.Remove(bc));
                    }
                }
            }
        }
    }
}

The attributes on the class setup some Asp.NET compatibility, and also specify that I want a single instance of the service and that multiple clients can access it simultaneously.  The constructor starts a thread that runs the pumpUpdates method, and this will always run for the lifetime of the service, and since it is a singleton there will only be one of this tread running.  I also declare a dictionary object that will keep references to all connected clients that will be used to send the updates to the client.

The RegisterForUpdate method used the following statement:

IPushDataCallback c = OperationContext.Current.GetCallbackChannel<IPushDataCallback>();

What this does is it looks at the "context" of the current call - which contains information about various things, including any callback channels.  The GetCallbackChannel will look to see if there is an implementation of IPushDataCallback (which is specified on the IPushDataService definition, so it better be there).  If this client is not already in the dictionary, then the reference will be stored there for use by the pumpUpdates method.  The UnregisterForUpdates method basically does the opposite.

The pumpUpdates method will loop endlessly, sleeping for a random period up to 10 seconds, and then will send a message to all clients that are subscribed (the message is the count value).  Also on each pass through I keep track if there is an exception calling a specific client in the 'bad' list variable.  If an exception is caught, I'll remember that client and assume that it has "died" and that we don't want to call back to it anymore, and after all clients are updated I'll remove those "bad" clients from the update dictionary.

Ok, we've got the code in place.  Now we need to configure WCF (via the web.config) to support Net.TCP communication.  The configuration file as currently put together by vs.net is the following:


<?xml version="1.0"?>
<configuration>
    <system.web>
        <compilation debug="true" targetFramework="4.0" />
    </system.web>
    <system.webServer>
      <modules runAllManagedModulesForAllRequests="true"/>
    </system.webServer>

    <system.serviceModel>
        <behaviors>
            <serviceBehaviors>
                <behavior name="">
                    <serviceMetadata httpGetEnabled="true" />
                    <serviceDebug includeExceptionDetailInFaults="false" />
                </behavior>
            </serviceBehaviors>
        </behaviors>
    </system.serviceModel>
</configuration>

We need to extend this to the following:


<?xml version="1.0"?>
<configuration>

    <system.web>
        <compilation debug="true" targetFramework="4.0" />
    </system.web>

    <system.webServer>
      <modules runAllManagedModulesForAllRequests="true"/>
    </system.webServer>

    <system.serviceModel>
        <behaviors>
            <serviceBehaviors>
                <behavior name="">
                    <serviceMetadata httpGetEnabled="true" />
                    <serviceDebug includeExceptionDetailInFaults="false" />
                </behavior>

              <behavior name="PushDataServiceBehavior">
                <serviceMetadata httpGetEnabled="true" />
                <serviceDebug includeExceptionDetailInFaults="true" />
                <serviceThrottling maxConcurrentCalls="2147483647" />
              </behavior>

            </serviceBehaviors>
        </behaviors>

      <bindings>
        <netTcpBinding>
          <binding name="InsecureTcp">
            <security mode="None"/>
          </binding>
        </netTcpBinding>
      </bindings>

      <services>
        <service behaviorConfiguration="PushDataServiceBehavior"
                 name="DuplexSilverlightExamples.Web.PushDataService">
          <endpoint address="" binding="netTcpBinding" bindingConfiguration="InsecureTcp"
                    contract="DuplexSilverlightExamples.Web.IPmtPocPushService"/>
          <endpoint address="mex" binding="mexTcpBinding" contract="IMetadataExchange"/>
          <host>
            <baseAddresses>
              <add baseAddress="net.tcp://localhost:4502/DuplexSilverlightExamples.Web/PushDataService.svc" />
            </baseAddresses>
          </host>
        </service>
      </services>

    </system.serviceModel>
</configuration>

What I've done here is added three sections:

  1. A service definition
  2. A netTcpBinding declaration
  3. and a new behavior section

The service definition:


<service behaviorConfiguration="PushDataServiceBehavior"
         name="DuplexSilverlightExamples.Web.PushDataService">
  <endpoint address="" binding="netTcpBinding" bindingConfiguration="InsecureTcp"
            contract="DuplexSilverlightExamples.Web.IPmtPocPushService"/>
  <endpoint address="mex" binding="mexTcpBinding" contract="IMetadataExchange"/>
  <host>
    <baseAddresses>
      <add baseAddress="net.tcp://localhost:4502/DuplexSilverlightExamples.Web/PushDataService.svc" />
    </baseAddresses>
  </host>
</service>

What this is specifying is that we want WCF to create a service implementing the IPushDataService interface, that we want to use the behavior we added in another section, the binding in the binding section, and that we want to expose two endpoints, one for metadata (using the mexTcpBinding), and one using NetTcpBinding (what this is all about) with the new behavior as well as the specified binding we are adding.

Note that it is needed to add a base address entry to the service specifying the full address of the service.  Net.TCP doesn't seem to like that and you'll get and error if you dont use it.  Note also that I specify that the port used is 4502.  Silverlight is limited to ports 4502 - 4534, so you better specify one in that range.

The netTcpBinding is needed as we need to specify that there is no security to be used on the channel.  Net.TCP does not currently support a secure channel (they say this will likely be added in a future version) and we are forced to explicitly specify the insecurity.  The behavior section is also useful, mostly to specify that we want to have the maximum amount of simultaneous clients accessing the service.

Ok, we now have the server side complete, and we need to modify the client to use the service.  Add a service reference to the client application.  Or, well, try to, because you will likely get the following error:

Contract Requires Duplex, ...  WTF?  Well, this is a problem that I always get and expect you will too, and needs to be addressed.  Unfortunately, I spent a lot of time googling this to no avail.  How did I solve it?  I rebooted the computer and that problem went away.  Go figure!

However, like many things like this, that one problem begat another:

But this one is well known, and mentioned earlier.  We need to configure both the web site and the web application to accept net tcp connections.  First, configure the binding on the web site by right clicking the site and selecting edit bindings:

So, add the binding for net.tcp on port 4502:*  Then, it is also necessary to add net.tcp to the application, so right click on the application, select manage application -> advanced settings, and make sure that net.tcp is also specified instead of just http:

You should now be able to add the service reference to the client application.

The client application I put together shows the messages in a listbox; I won't go into that code.  But to utilize the service, I modify the MainPage.xaml.cs file as such:

public partial class MainPage : UserControl
{
    private ObservableCollection<string> _updates = new ObservableCollection<string>();

    public MainPage()
    {
        InitializeComponent();

        messagesListbox.ItemsSource = _updates;

        pds.PushDataServiceClient c =
            new pds.PushDataServiceClient("NetTcpBinding_IPushDataService");
        c.UpdateReceived += c_UpdateReceived;
        c.RegisterForUpdatesAsync();
    }

    void c_UpdateReceived(object sender, pds.UpdateReceivedEventArgs e)
    {
        if (e.Error == null)
        {
            _updates.Add(e.theUpdateMessage);
        }
    }
}

This is pretty straight forward code.  I keep an overvable collection of strings that hold the update messages and it is bound to the items source of the listbox.  I create an instane of PushDataServiceClient and pass the name of the binding in the ServiceReferences.ClientConfig file for the service (automatically created by the add service reference process).  The UpdateReceived event is bound to a method which will be called when the Update method on the client is called by the server (which triggers the UpdateReceived event - the name is the method name + "Received").  The event handler check to see if there was no error, and if so adds the parameter to the callback to the list, which then triggers an update of the UI.

But wait.  There is still a problem.  If you run this as is, it just looks like nothing is happening.  So, run the application in the debugger and you get the following error:

This is caused by us not having a socket policy server running.  When Silverlight attempts socket communications, it will contact the origin server on port 943 and ask for a policy file to see if the client is allowed to do communications.  This was actually a big issue for me at first as I thought I could just post the policy file in IIS and map port 943 to serve it with TCP.  That did not work.  You need to write your own server to do this, but thankfully there is one available as an online template project that you can add to your solution.  So, add a new project to the solution, but select "Online Templetes" for "silverlight tcp":

Once you have that project added, you can start it manually (it's a console app), or do like I do and setup multiple project starts with it going first.  Once you have it running you should see something like this in the application:

That is the listbox showing the messages sent from the server.  The console window just behind is the socket policy server.

But wait - there is perhaps one more problem!  If for some reason the Net.Tcp Listener service is not running, you would get an error similar to the following.  If that is the case, make sure the service is running.

Phew!  That's about it!  Must be a record for me for a blog post, but I hope it saves you a lot of hassle!

BTW, I will have a follow up post where I extend this service to have a binding for Http Duplex Polling in addition to the Net.TCP binding.  This will allow Silverlight 3 clients to still use the service, albeit a bit less efficiently, but it does keep them from being excluded from all the fun.  I'll write about how to do that soon.

Using WCF RIA Services with your POCO, Part 5: Returning a POCO in another Assembly from the Domain Service

In part 4 of this series I showed how to declare a POCO for use in RIA services, and how to use the object on the client.  In this post, I'll show how to use a class in another project/assembly.  Honestly, it's not very difficult at all.

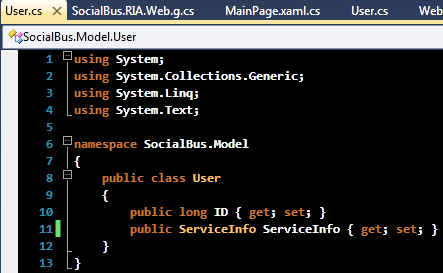

As part of the SocialBus solution, I already has a User class defined in another project (SocialBus.Model).  This is a pretty straightforward class as-is:



A user in SocialBus is just a SocialBus specific user id, and a ServiceInfo object.  The ServiceInfo object is what is of real interest in SocialBus, as it will contains users and messages from various social networks (Twitter, Yammer, ...) that are mapped to this SocialBus user with the specified ID.  But for purposes of this example, it is only needed to be concerned with this User class.

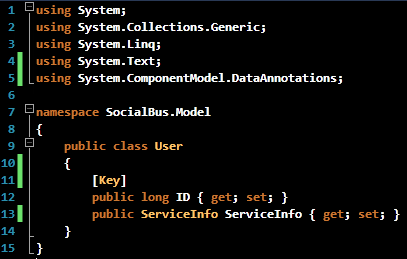

To RIA enable this class, all I need to do as before is annotate the class, and all that is needed for now is to add a Key attribute:

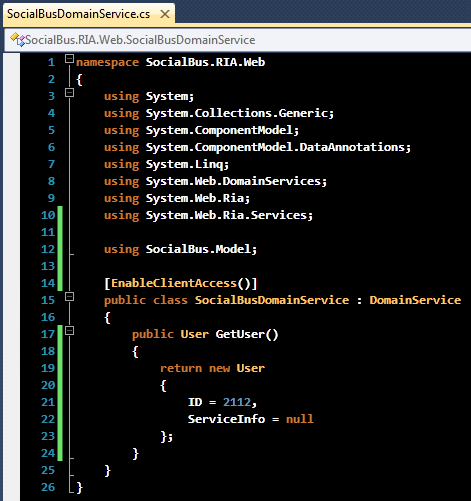

This class is now ready to be used in the RIA services library.  All that is needed to be done is to add a reference to SocialBus.Model to SocialBus.RIA.Web, and to change the domain service to return an instance of this User class:



Now this service is very contrived and not of much use, but this is just for showing this example.  In another series of posts I will discuss connecting the domain service to LINQ to SQL, Twitter and Yammer; returning collections of objects; but like I said that's for another time.

The differences in this service model are really just in the using for the SocialBus.Model namespace, and in returning and instance of that object.  The client only changes slightly (besides there are no e-mail and username properties) is that I needed to add a 'using SocialBus.Model;' line.

That's it for this series.  There's a lot more that can be covered, but like I said those will be for another series of posts (that I'll do soon).



Using WCF RIA Services with your POCO, Part 4: Returning a Simple POCO from RIA

In part 3 I showed how to access a simple RIA service from Silverlight, but it wasn't too interesting as it didn't even return an object of a class (just a double).  In this post I'll show how to extend the service to return an instance of a user class.  For simplicity I'll still implement this in the RIA web project and in later posts we'll use another library.

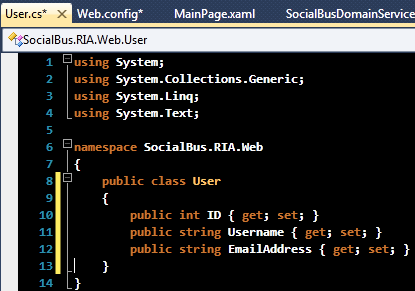

Creating a class for use in RIA services is as easy as creating a new class and adding a few data annotations.  In the case of SocialBus, the primary data type is a 'User', so I'll add a simple user class to the project and add a couple of useful properties:



This class itself isn't very useful for RIA services.  As a matter of fact if we tried to use it in a service API the system would throw an exception complaining that there is not a key defined for the class.  This is imporant in RIA services, even with POCO, as the class needs to have this attribute assigned using data annotations.  So, I'll add this by including the System.ComponentModel.DataAnnotations namespace, and the [Key] attribute on the ID property:



What is interesting is that if you compile the solution, there is still no additional code generated.  The code generator is smart enough to know that even though I annotated this class, that no domain service uses the class and therefore code is not needed.

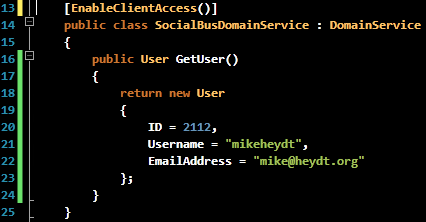

Now I need to modify the domain service to return  User object.  This is a typical use case in SocialBus, that given an ID the client would like to get User object for that ID.  For right now to keep it simple I will just add a single GetUser method that takes no parameters and returns a canned instance (this will get much more complicated later):



I won't show the generated code for the service, but the generator has added a User class to the generated code:



Notice all the niceties here.  DataContract, DataMember and Key attributes; fully formed properties that handle all of the entity types of operations (on this, on that, ...); all automatic.

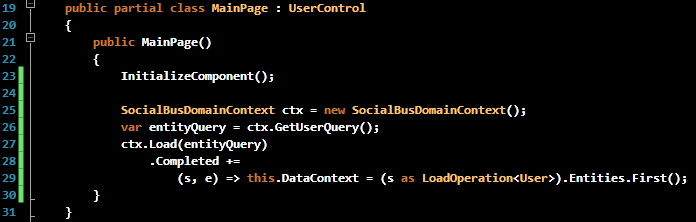

To use the object on the client, the Silverlight code changes to be as follows:



Notice that there are some subtle differences here than in the last example.  First, notice that the GetUser method in out domain service generates a method named 'GetUserQuery'.  This is because since it the method is returning and entity, it appends Query to the client side method name.  This is to clue you into the second difference, in that this method returns an EntityQuery<User> object instead of an InvokeOperation instance, because this is actually constructing an entity query object that is both lazy loaded and can be used in a LINQ clause.

The third difference is that to get the object it is needed to pass the query to the Load method of the domain context object.  This will actually invoke the service call asynchronously, and it is then possible to set the Completed event handler to a method that is executed when the call completed.

The final difference(s) are that the first parameter to the callback is of type LoadOperation<T>, and that to get the result values it is needed to access the 'Entities' property of this object, and in this case I get the first object and assign it to the data context of the user control.

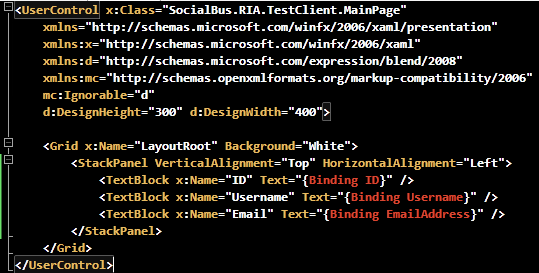

For reference, here is the XAML for this control to show how the data binding is specified:



That's it for this post.  The next post will show how to use a POCO in another library other than the .web project created by the RIA wizard.

Using WCF RIA Services with your POCO, Part 3: Calling the Domain Service form a Silverlight Client

In part 2 I showed how to create a domain service and get the code generated for that service (heck that was automatic).  In this post I'll show how to call that service from Silverlight.

In the the first post I added a reference to the Silverlight project to the Silverlight.RIA project, which will allow the Silverlight application to use those classes.  I modify the MainPage.XAML to have a TextBox named 'result' and modify the MainPage.XAML.cs file to be as follows to call the service and display the result:

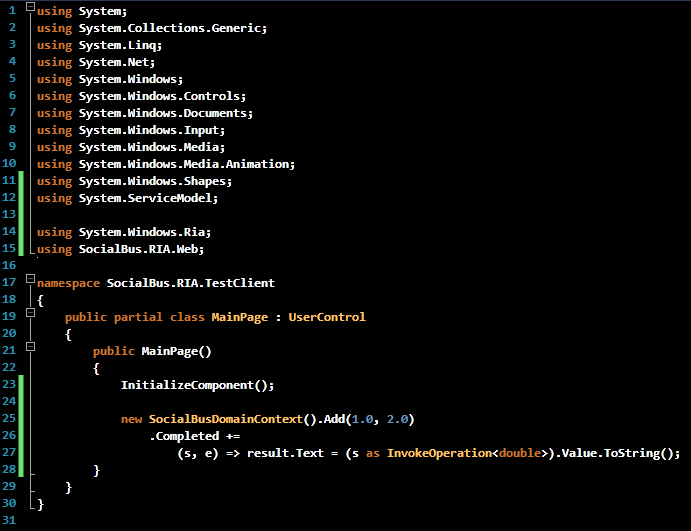

What's going on here?  We'll, there is a whole new syntax to these calls, which I will explain briefly.

On lines 14 and 15 I add two namespaces as they are needed for the InvokeOperation (System.Windows.Ria), and the SocialBus.RIA.Web is the namespace in our RIA web project that contains the domain service.

The domain service we created is implemented by the SocialBusDomainContext class.  It has a bunch of methods for managing entities, as well as the method I added to the class, 'Add'.  To call the service, I create a new instance of this class, and call the 'Add' method.  As is the case in Silverlight, all calls are asynchronous, so to capture the result a delegate is assigned to the method calls return value's (which is an InvokeOperation object) Completed event handler.  I choose to use the lamba syntax for this, and the method is actually passed the InvokeOperation object and an EventArgs object.  I cast the 's' parameter to InvokeOperation<double> (the generic is important), get the return Value, convert it to a string and assign it to the text box on the UI.

Sure, there is a lot more detail that can be covered here, such as error/exception handling and such, but this show the basics of calling the service and using the result.  In the next post, I'll show how to create a POCO and pass it to the client.

Using WCF RIA Services with your POCO, Part 2: Creating a Simple Domain Service

In part 1 of this series of posts I covered adding a new WCF RIA Services Class Library to your solution.  In this post, I'm going to cover creating a domain service and getting the code generated for the domain service.  Note that in this post I'm not even going to create a new POCO - I'll keep it even simpler.  In follow up posts I'll show how to use POCO and an POCO in an existing library.

To add a domain service for that will eventualy serve POCO objects, and hence create a web service to implement it, I add a new items called 'Domain Service Class' to the SocialBus.RIA.Web project:



When you press add on this dialog, you will then be presented with the 'Add New Domain Service Class' dialog.  The purpose of this dialog is to allow you to select a data context (or object context) from you solution for the derive the domain service.  Normally this adds a lot of smarts to the domain service for managing entities exposed by providers like the Entity Framework.  Since we are using POCO, we can just select 'OK':



This adds a file named 'SocialBusDomainService.cs' to the project, and it looks like the following:



There's not a whole lot to this class, but I'll shortly be adding methods to provide functionality to clients.

One thing that I'm going to do right now is add a quick Silverlight application to the solution for showing how to use these classes; right now we have no place to use these so we need to do that now.  So, in the RIA folder I add a new Silverlight application (named SocialBus.RIA.TestClient) and I already had a web project in the solution (named SocialBus.Web) so I serve up the Silverlight app from that project.

I also make sure to 'Enable .NET RIA Services' on the dialog that pops up:



Two things now need to be done.  I need to add references for the RIA projects to both the new Silverlight client, and to SocialBus.web web site.  So, in the new Silverlight project I a reference to SocialBus.RIA, and to the SocialBus.Web I add a reference to SocialBus.RIA.Web.  What this does is allow the Silverlight app to use the code generated by VS.NET / RIA, and the reference to SocialBus.Web extends that solution to know how to serve up the domain services declared sin SovialBus.RIA.Web.

Before proceeding, a useful thing to do is to select 'Project -> Show All Files' from the main menu when the SocialBus.RIA project is selected.  RIA auto-generates code into a hidden folder anmed in that solution, and this lets you see that folder and the code files:



Right now there is not folder or files files as no code has been generated, even if you compile the solution.  This is because the domain service is empty at this point, and the code generation extensions see this and don't generate anything.  As a matter of fact, there is also a warning to this fact emitted by the compiler:



To get some code generated, I'll add a real simple method to the domain service.  I don't think this scenario is written anywhere, as every example seems based upon entities, and CRUD operations.  What I'm going to do is just add a method that adds two doubles and returns the result:



I'll be honest, I'm not sure this is even supposed to work as I can't find any info that supports it.  But it does.  Compile the solution and you now see code generated:



Cool!

Double click the generated file to examine the generated code.  The at this point contains one class, SocialBusDomainContext, which is the class we will use in the Silveright project to call the domain service (partially shown here):



Note the 'Add' method which is generated to match the add method of the domain service we created.  There are actually two versions with different signatures that are created (to give different ways of calling the service):



One thing I want to point out at this point.  How is this code generation triggered, and how does it know what code to look at?  Open the properties for the SocialBus.RIA project, and it shows the following:



The .NET RIA Services link specifies a project, that when this project is compiled, that will be examined for domain services and entities, and for those identified code will be generated.

One more thing.  Because I'm using a Silverlight RIA Class Library and my own web site (not one auto generated by the wizard), the web.config on my site must be modified to know how to serve the RIA service from the domain service class.  Getting this to work requires adding three entries to web.config:



There's is still some magic in all of this on how the service is exposed, but that's a story for another post.

Okay, I think that's enough for this post.  In the next post I'll show how to call this service from Silverlight.



Using WCF RIA Services with your POCO, Part 1: Creating a WCF RIA Service Library

Now that it's post PDC09 I've decided to take some time to migrate some of the code that I have in my SocialBus project from standard WCF and DTO's over to RIA services.  The SocialBus project is something I've been working on as an evolution of back end of the TweetZenn client I was building before.  What it will provide is a unified interface to various social networks; right now that being just Twitter and Yammer.

Up to now I've built it with standard WCF services.  This always had a problem that bugs me to now end.  In the solution I have "Model" classes for the domain, and the service calls return those model objects to the client.  The problem is that to use the service in Silverlight, the proxy generator builds new classes based off of the WSDL from the service.  These classes look the same from the perspective of properties, but they are:

  1. In a different namespace
  2. Lose any methods to perform manipulations of the data in the objects

What this is in all actuality is an implementation of the Data Transfer Object pattern implemented by visual studio.  It's problematic for the reasons mentioned above, as well as if you build any libraries that use the model objects, the objects you have in the client are actually not the objects in the library, and it won't work.

A typical scenario to solve this is the following:

  1. Cross-compile the model code in Silverlight, and
  2. Project the DTO objects into the silveright versions of the model objects

Well, this works fine, but it's a real pain in the butt.  Every model object's .cs flle has to be added as a link into a Silverlght project.  First, this is real fun with the Silverlight and non-silverlight libraries get out of sync because you forgot to add a link to a new class.  Second, you are doing all these projects.  Sure, LINQ makes it real easy, but why can't I just use my object as I defined it the first time!?!?

Well, WCF RIA services is supposed to solve all of this.  I've played with it a bit in the last week and decided to really start using it.  Note, I tried the CTP and had too much trouble with it, but those issues seem to be solved.  So, I'm going to stick it in a real project now and give you some tips on how to use it.

Now, this may not be the most elegant way of doing it.  It's what I'm doing to learn more.  Also, I am using POCO, which is for the most part very sparsely documented and not in a manner of how I want to use it.  Finally, yes, I use LINQ to SQL on the backend, and I could just move to LINK to EF and use RIA to move the entities to the client.  However, this has issues to me that are not obvious yet in this solution; so yes, I could do it and things would be easier for purposes of this demonstration, but it is not in the long run so I'm just going to use LINQ to SQL for that database access and project them into the domain model POCO objects for passing back by RIA (also note that client side I am not planning to need any entity tracking, so that lack of functionality also makes EF an amount of overkill).

To start out, the solution looks like this:

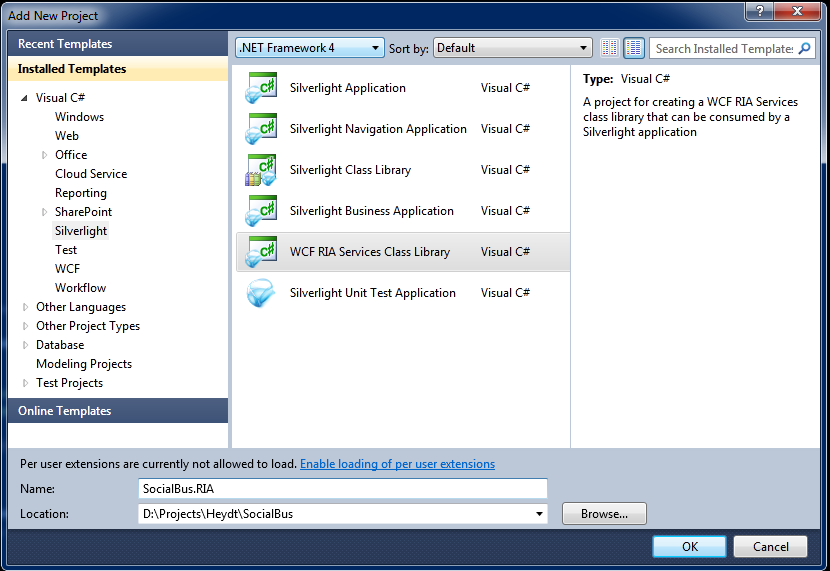

What we need to do is add a WCF RIA Services Class Libary to the solution (I'm putting it in a solution folder named 'RIA' - which is already shown):

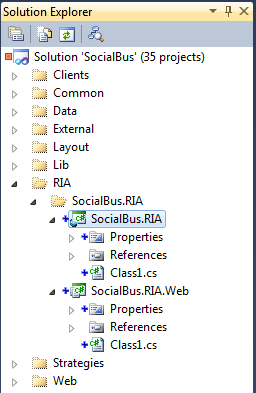

This creates two projects in the solution:



The Class1.cs files are not needed so I will delete them as I'm going to use an existing C# library instead of adding new classes to these projects.  This is one area in existing documentation that is not clear as it always mentions to add new classes to these projects.  What if I have existing classes in another assembly and I don't want to duplicate effort (Dont Repeat Yourself - DRY)?  Well it's okay as it works fine and I'll show an example of it.

Anyway, what are the purposes of these two projects?

The project that ends in '.Web' is where we will place our RIA domain service(s), which will eventually be exposed as WCF services (I'd say web services, which used to be true, but there are other potentials now too).  This project can be linked into your web project for you Silverlight app and the service(s) defined by the domain service classes will be exposed from that web site.  Also, in most examples on the web, you also put your domain objects in this solution.  Since I've got them declared already, we'll only be putting domain services in here.

The other project is where the RIA services extensions in Visual Studio will auto generate code for Silverlight based applications, which includes both service proxies, as well as Silverlight based versions of your domain objects.  This code generation is done by the extensions by examining the attributes on classes in this solution (and it turns out any referenced assemblies) post compile.

This is really convenient for the following reasons:

  1. You don't have to manually create the proxies through add service reference,
  2. You never have to regenerate proxies when changing the service interface (the code is always regenerated),
  3. The domain objects are in the same namespace as you gave them in wither the .web file, or in our case the assembly that we already have written, and
  4. The signature of the Silverlight objects will be the same, and given the correct use of RIA attributes, will also have any methods that you define for client side business logic.

Well, I'm thinking I'll break this into a number of parts as it appears this will be involved.  In the next post, I'll write about how to create and consume a really basic domain service thereby showing how RIA makes this all work.



403.3 Problem with WCF and Azure WebRole in local development fabric

During the building of the WCF service mentioned in my previous post, I came across an error when trying to access the WCF service when running it within the local development fabric.  It worked fine when just running the web role, and when deployed into Azure.  So, this led me to investigating if the IIS as used by the local development fabric to see if it was not configured to serve .SVC files.

One of the first things that I did to investigate was to just navigate to the service in the browser with a brand new service project that I put together.  When doing this, I received the following:



There should be a page showing the information about the service, instead a 403.3 error.  Likewise, when stepping through the debugger, similar errors could be seen when checkin the exceptions.

After a bit of googling, the solution to this turns out to be the following.  Apparently, WCF is not configured properly with IIS.  This feels very similar to the problem when ASP.NET sometimes is not configured properly, in that the solution is very similar.

To solve the problem, navigate to the windows communication foundation folder as shown here, and run the "ServiceModelReg.exe -i" command.



After running that program, you will see output similar to the following and the problem will then be solved.



About the author

I'm a .NET, XAML, and iOS polyglot that loves playing with new things and making cool and innovative stuff.  I am also a Mac junkie.

I am Principal Technologist for SunGard Global Services in NYC, in their Advanced Technologies practice, and I work extensively with SunGard's energy and financial customers.

Note the the posting on this blog are my own and do not represent the position, strategies or opinions of SGS.

Widget TwitterFeed not found.

The file '/widgets/TwitterFeed/widget.ascx' does not exist.X

Recent Comments

None

Month List
